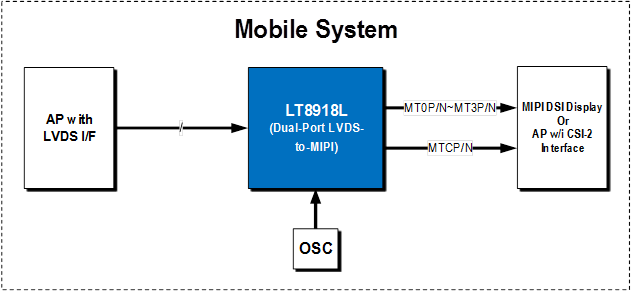

The Lontium LT8918L is a high performance Dual-Port LVDS to MIPIDSI/CSI-2 bridge chip between AP and mobile display panel or camera.
LT8918L can be configured as single-port or dual-port with optional De-SSC function. The bridge deserializes input LVDS data, decodes packets and converts the formatted video data stream to MIPIDSI/CSI-2 transmitter output.
For MIPI DSI/CSI-2 output, LT8918L features a single port MIPI DSI or CSI-2 transmitter with 1 high-speed clock lane and 1~4 configurable high-speed data lanes operating at maximum 1.5Gb/s/lane, which can support a total bandwidth of up to 6Gb/s. LT8918L supports both Non-Burst and Burst DSI video data transferring.
The LT8918L is fabricated in advanced CMOS process and implemented in a small outline 7.5mm x 7.5mm QFN64 package. This package is RoHS compliant and specified to operate from -40°C to +85°C.
• Single/Dual-Port LVDS Receiver
• Single-Port MIPI DSI Transmitter
• Single-Port MIPI CSI-2 Transmitter
• Mobile systems
• Cellular handsets
• Digital video cameras
• Digital still cameras
• Tablet PC, Notebook PC
• Car Display and Camera System
