    1. General Description

    LT8511A is a low cost high performance single port HDMI receiver which is compliant with HDMI 1.3. The RX can receive 1080p (8/10/12bit deep color, up to 2.25GHz data ratio) input. Besides it supports Analogue Video-output up to UXGA and 1080p with three high resolution DACs. The chip integrates Equalizer, HDMI core and HDCP engine in a single chip.

    2. Features
    • On-chip HDMI receiver with Equalizer, supports 8/10/12bit deep color, up to 2.25GHz data ratio.
    • On chip receiver core which is compliant with HDMI1.3 specification.
    • On chip HDCP engine which supports repeater and is compliant with HDCP1.3 spec.
    • Supports pixel clock rate up to 165MHz.
    • Supports analogue video output up to UXGA and 1080p with three on chip DAC.
    • On-chip audio decoder which support 2-channel IIS and SPDIF audio outputs.
    • Support audio soft mute.
    • On chip YCC422 to YCC444 conversion.
    • On chip YCC to RGB and RGB to YCC conversion in ITU-R BT.601 and 709 color space.
    • Support separate sync output and SOG/SOY.
    • Flexible interrupt registers with interrupt pin.
    • Link on and Valid DE detection.
    • The LT8511A is offered in 64-pin QFN package, and operates over -40°C to +85°C temperature range

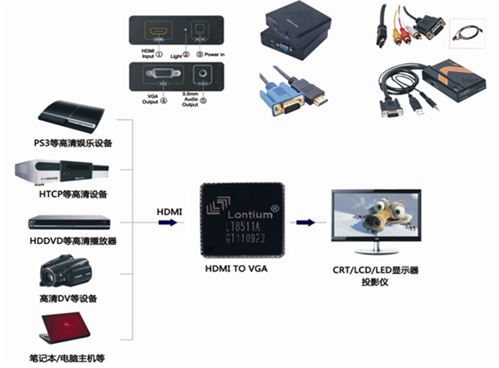

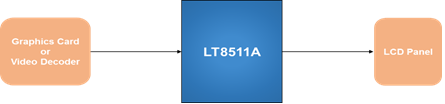

    3.Application Diagram

    • Mobile Phone
    • Tablet/Pad
    • Ultra book
    • Home Game Console
    • PC/Graphic Card
