1. General Description

LT8511A-M is an integrated solution of LT8511, it is a low cost high performance single port HD-DVI receiver which is compliant with HD-DVI 1.3. The RX can receive 1080p (8/10/12bit deep color, up to 2.25GHz data ratio) input. Besides it supports analog video output up to UXGA and 1080p with three high resolution DACs. The chip integrates Equalizer, HD-DVI core in a single chip. The chip integrates an 8bit MCU for the control of the converter.  The integrated LT8511A-M provides a more robust solution and space & cost reduction as well.

2. Features
• On-chip HD-DVI receiver with Equalizer, supports 8/10/12bit deep color, up to 2.25GHz data ratio.
• On chip receiver core which is compliant with HD-DVI1.3 specification.
• Supports pixel clock rate up to 165MHz.
• Supports analog video output up to UXGA and 1080p with three on chip DAC.
• On-chip audio decoder which support 2-channel IIS audio outputs.
• Support audio  mute.
• On chip YCC422 to YCC444 conversion.
• On chip YCC to RGB and RGB to YCC conversion in ITU-R BT.601 and 709 color space.
• Support separate sync output and SOG/SOY.
• Flexible interrupt registers with interrupt pin.
• Link on and Valid DE detection.
• Integrated MCU for control

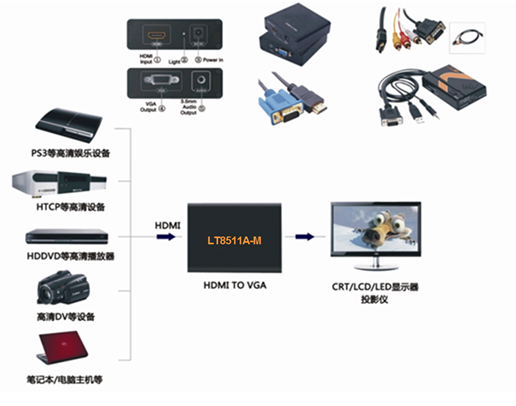

3. Applications

• Mobile Phone
• Tablet/Pad
• Ultra Book
• Home Game Console
• PC/Graphic Card
